[Gradle] KeytoolException: Failed to read key creature from store

| 개요



keystore 정보는 ProjectSettings.asset 파일에 아래와 같이 저장된다.

  AndroidKeystoreName: '{inproject}: Keystore/name.keystore'
  AndroidKeyaliasName: name
...중략...
  androidUseCustomKeystore: 1

하지만 비밀번호와 같은 정보는 별도로 저장되다보니
체크아웃을 새로 받을 때마다, keystore 세팅을 다시 해줘야했다.





| 현상



FAILURE: Build failed with an exception.

* What went wrong:
Execution failed for task ':launcher:packageRelease'.
> A failure occurred while executing com.android.build.gradle.internal.tasks.Workers$ActionFacade
   > com.android.ide.common.signing.KeytoolException: Failed to read key creature from store "/Users/${USER}/.jenkins/workspace/${PROJECT_NAME}/Keystore/user.keystore": Keystore was tampered with, or password was incorrect

* Try:
Run with --stacktrace option to get the stack trace. Run with --info or --debug option to get more log output. Run with --scan to get full insights.

* Get more help at https://help.gradle.org

Deprecated Gradle features were used in this build, making it incompatible with Gradle 7.0.
Use '--warning-mode all' to show the individual deprecation warnings.
See https://docs.gradle.org/6.1.1/userguide/command_line_interface.html#sec:command_line_warnings

ProjectSettings.asset 파일에는 androidUseCustomKeystore값은 1로 남아있는데,

alias나 비밀번호 같은 값이 날아가 버려서 위와 같은 에러가 발생한다.





| 해결



using UnityEditor;
using UnityEngine;

namespace Tools.Settings
{
    [FilePath("UserSettings/BuildConfigs.asset", FilePathAttribute.Location.ProjectFolder)]
    public class BuildConfigs : ScriptableSingleton<BuildConfigs>
    {
        public string __ks_pass;
        public string __ks_key_alias;
        public string __key_pass;

        public string KeyStorePassword => Base64.Decode(__ks_pass);
        public string KeyAlias => Base64.Decode(__ks_key_alias);
        public string KeyPass => Base64.Decode(__key_pass);

        public void Save()
        {
            Save(true);
        }
    }

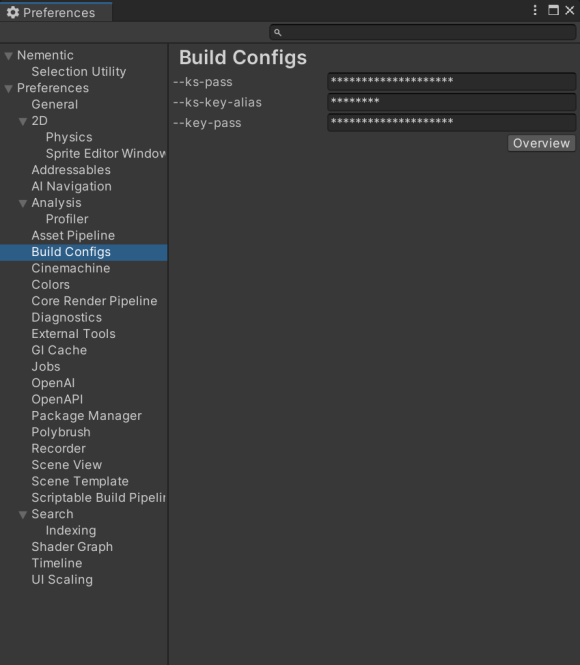

    sealed class BuildConfigsProvider : SettingsProvider
    {
        public const string Url = "{url}/manage/configure";

        public BuildConfigsProvider()
          : base("Preferences/Build Configs", SettingsScope.User)
        {

        }

        public override void OnGUI(string search)
        {
            var settings = BuildConfigs.instance;

            var __ks_pass = settings.KeyStorePassword;
            var __ks_key_alias = settings.KeyAlias;
            var __key_pass = settings.KeyPass;

            EditorGUI.BeginChangeCheck();

            __ks_pass = EditorGUILayout.PasswordField("--ks-pass", __ks_pass);
            __ks_key_alias = EditorGUILayout.PasswordField("--ks-key-alias", __ks_key_alias);
            __key_pass = EditorGUILayout.PasswordField("--key-pass", __key_pass);

            GUILayout.BeginHorizontal();
            GUILayout.FlexibleSpace();
            if (GUILayout.Button("Overview"))
            {
                Application.OpenURL(Url);
            }
            GUILayout.EndHorizontal();

            if (EditorGUI.EndChangeCheck())
            {
                settings.__ks_pass = Base64.Encode(__ks_pass);
                settings.__ks_key_alias = Base64.Encode(__ks_key_alias);
                settings.__key_pass = Base64.Encode(__key_pass);
                settings.Save();
            }
        }
    }

    static class BuildConfigsRegister
    {
        [SettingsProvider]
        public static SettingsProvider CreateCustomSettingsProvider()
          => new BuildConfigsProvider();
    }
}

CI 툴에서 파라미터로 전달해도 되지만,

버전 관리 툴에서 관리되었으면 해서 UserSettings에 값을 저장할 수 있도록 하였다.







| 참고



Unity - Scripting API: SettingsProvider
